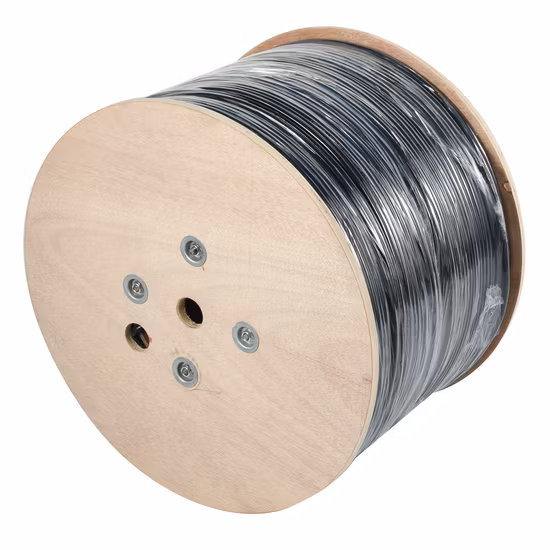

Fiber Optic 1 Core 1km 2km Plywood Drum FTTH Drop Cable Single Mode Indoor Fiber Optic Cable
Overview Product Description
Send your inquiryDESCRIPTION
OverviewBasic Info.
| Model NO. | DROP CABLE |
| Core | Multicore |
| Certification | RoHS, CE, ISO9001, CCC |
| Brand | Ance |
| Sheath Material | LSZH |
| Transport Package | Drum |
| Specification | 1C/2C/4C/6C |
| Trademark | ANCE |
| Origin | China |
Product Description
Product Description| Feature | *Certification: ISO9001 CE ROHS*Standard:IEC 60794-1-2 *Application: for indoor outdoor FTTH fiber cabling system * 100% inspected both on performance |
| No. | Items | Unit | Specification | |||
| G.657A1 | G.657A2 | |||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | 8.8±0.4 | |
| 1550nm | μm | 10.1±0.5 | 9.8±0.5 | |||
| 2 | Cladding Diameter | μm | 124.8±0.7 | 124.8±0.7 | ||
| 3 | Cladding Non-Circularity | % | ≤0.7 | ≤0.7 | ||
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ≤0.5 | ||
| 5 | Coating Diameter | μm | 245±5 | 245±5 | ||
| 6 | Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ||
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | ||
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 | ≤0.36 | |
| 1550nm | dB/km | ≤0.21 | ≤0.24 | |||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | ≤0.5 | |
| 1turn×10mm radius @1625nm | dB | ≤1.5 | ≤1.0 | |||
