DESCRIPTION

Basic Info.

Model NO.	LC2ISSPZBL00
Application	Sm mm APC
Om3 Default Color	Aqua
Om4 Color	Violet
Default Color	Sm-Blue,Sm APC-Green,
Flammability Grade	UL94V-0
Spring	Regular or R V L M
Shutter	Internal Shutter Is
Sleeve Type	Zirconia(Z) or Phospho Bronze(P)
Housing	Sp Slimpack
Product Name	LC Duplex Slim-Pack Internal Shutter Adapter Spz
Transport Package	Carton
Specification	9.4x12.8x29.2mm
Trademark	SUNCALL
Origin	China
HS Code	8543709990
Production Capacity	500000PCS /Month

Product Description

Advanced LC Duplex Slim-pack Internal shutter adapter SM MM APC Original Suncall Fiber Optic Connector Adapter SC Fiber Coupler For FTTH Telecom & Data Center SM MM OM3/OM4 from Agent Byvision China
The Suncall LC Series Fiber Optic Adapters combines all the benefits of a highly compact design with the high-optical performance required by today's most demanding fiber optic and networking applications. Our LC Series include a broad selection of connectors and adapters, available in a variety of different models and styles. Used for single, multi-mode and APC applications.

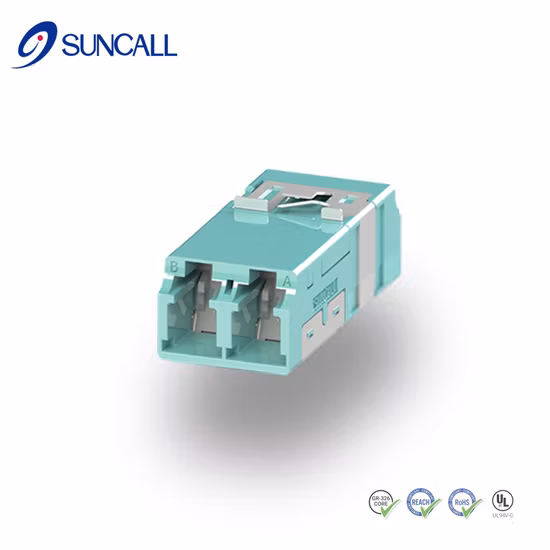

SUNCALL LC Duplex Slim-pack Internal shutter IS Fiber Optic Adapter
Model No.:LC2ISSPZBL00SPECIFICATIONS:
Fiber Type: SM (9/125), MM (50/125, 62.5/125)
Application Mode: SM, MM, APC
Insertion Loss: 0.2dB or lower
Return Loss: 55dB or more UPC; 65dB or more APC
IEC: IEC 61754-20
Telcordia: GR-326-CORE Compliant
EU Regulations: RoHS, REACH Compliant
Flammability Grade: UL94V-0
Defualt Color:
Single Mode: Blue
Single Mode APC : Green
OM3: Aqua
OM4: Violet
There are more specification about this SUNCALL LC Slimpack Adapter as below:

LC Internal Shutter (IS) Slimpack Adapters From agency BYVISION China
1. LC Duplex Slim-pack Internal shutter adapter
The original Japan brand Suncall LC IS Slimpack Duplex Adapter has been updated with a new trimmer and compact footprint. The reduced height of 9.4 mm allows for high-density packaging and the choice of side or vertical spring latches provides custom installation options. The internal shutters provide maximum protection from lasers, dust, and other debris while protecting the ferrule.

LC Quadplex Slim-pack Internal shutter adapter
The original Japan brand Suncall LC IS Slimpack Quad Adapter has been updated with a new trimmer and compact footprint. The reduced height of 9.4 mm allows for high-density packaging and the choice of side or vertical spring latches provides custom installation options. The internal shutters provide maximum protection from lasers, dust, and other debris while protecting the ferrule.
There are more type Suncall LC/SC/MPO Fiber Optic Adapter or Fiber Coupler provided from BYVISION
